Subsystem Manifest

Purpose

A Subsystem Manifest is the set of subsystem attributes that define:

• how the subsystem is identified in Reqode,
• what it is responsible for,
• which subsystem-wide technical rules AI assistants should follow.

The manifest must contain only information that is common for the whole subsystem.

Where to find in UI

• Project Settings → Subsystems → (… → Edit)
• or Project Settings → Subsystems → + (create)

Then use the Subsystem Editor tabs:

• General
• Code

Prerequisites

• User is a member of the project.
• Permissions scope: Project Settings.

Step-by-step

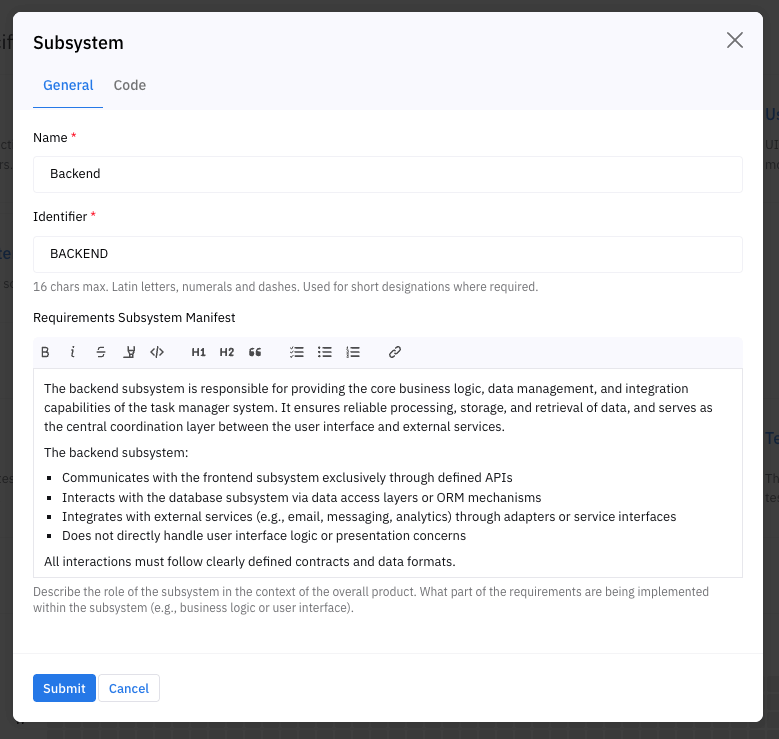

1) Fill in General tab

Fields:

• Name (required)
• Identifier (required)
• Requirements Subsystem Manifest (optional, WYSIWYG/Markdown)

Validation rules:

• Identifier is required and must be:length 1..16,characters A–Z a–z 0–9 -,unique within the project.
• length 1..16,
• characters A–Z a–z 0–9 -,
• unique within the project.

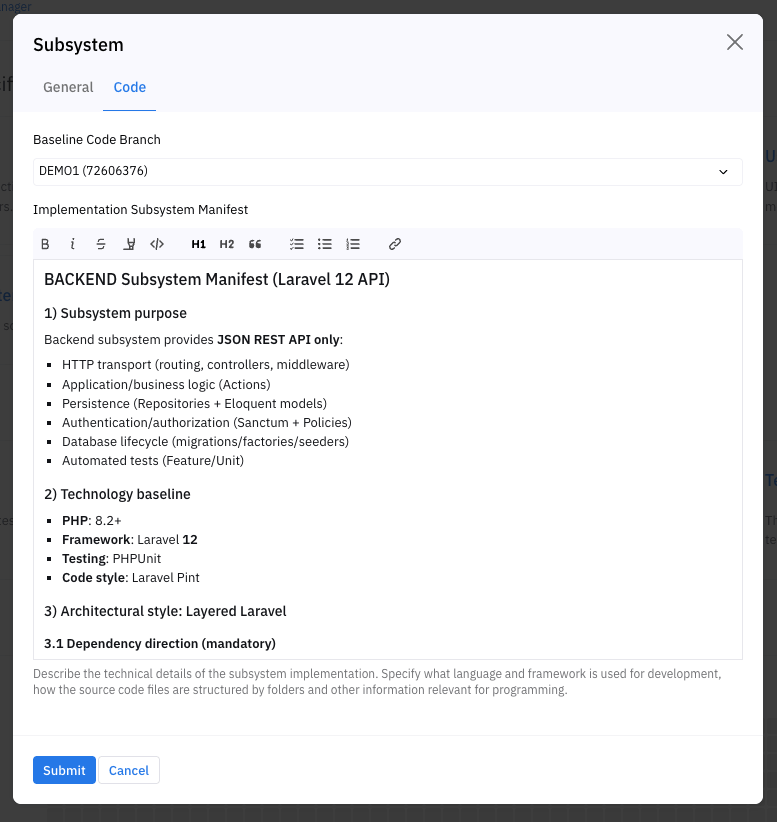

2) Fill in Code tab (optional)

Fields:

• Baseline Code Branch (optional)
• Implementation Subsystem Manifest (optional, WYSIWYG/Markdown)

Notes:

• Baseline Code Branch can be left as Not Defined.
• Implementation Subsystem Manifest should contain subsystem-wide rules only.

3) Save

• Click Submit to save.
• Click Cancel to close without saving.

Result

• The subsystem appears in the project subsystem list.
• Requirements can be assigned to this subsystem.
• AI assistants can use your subsystem-wide guidance.

Errors / Constraints

• Identifier already exists: you must choose a different Identifier.
• Invalid Identifier format: use only A–Z a–z 0–9 -, max length 16.
• Network/server error: changes are not saved.

Best practices

Requirements Subsystem Manifest: good vs bad

Good (explains role and boundaries):

• "Frontend web app for the Reqode UI. Talks to backend via REST. No business logic; only UI and client-side state."
• "Backend monolith. Owns authentication, requirements storage, and API for all UIs."

Bad (too generic / not actionable):

• "Frontend"
• "Does everything"
• "Main service"

Implementation Subsystem Manifest: good vs bad

Good (subsystem-wide and specific enough):

• "Use TypeScript. Prefer feature-sliced structure under /src/features."
• "All new API calls must go through the shared httpClient wrapper."
• "Do not introduce new global state libraries; use the existing one."

Bad (unit-type specific or too low-level):

• "In component X, create method fooBar()" (too specific)
• "Use NestJS module layout for controllers" (belongs to a backend unit type, not the subsystem manifest)
• "Write clean code" (not actionable)

Naming and identifiers

• Keep Identifier stable over time. Changing it may break references in requirements.
• Use short, readable identifiers: BACKEND, WEB, MOBILE, WYSIWYG.
